MPFCarousel

The MPFCarousel node works in tandem with the MPF Carousel mode to support dynamic content switching based on rotation events (a timer, flipper presses, or anything else).

Requires MPF 0.80

The MPF 0.80 events that drive the MPFCarousel are changed from those in MPF 0.57. If you have an existing MPF 0.5 carousel you may need to update your event handlers.

Node Configuration

Add an MPFCarousel node to your slide and create child nodes for each carousel item you wish to render. You can use the eyeball icon in the Scene panel to preview what each carousel item will look like. Each child node needs to have a name that corresponds to one of the selectable_items: in your MPF config file.

    # attract_mode.yaml

    mode:
      start_events: mode_attract_started
      stop_events: mode_attract_will_stop
      game_mode: false
      code: mpf.modes.carousel.code.carousel.Carousel

    mode_settings:
      selectable_items:
        - gameover
        - title
        - last_game_scores
      next_item_events: s_flipper_right_active
      previous_item_events: s_flipper_left_active


When the MPF Carousel mode selects an item to display, it will post event with the name of the carousel mode and the name of the selected item. The MPFCarousel node will then iterate through its child nodes and hide all children except one with the same name as the selected item.

Single value, type String. Default None.

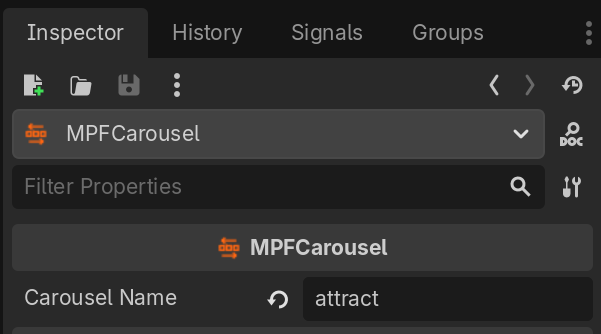

This value is set in Godot by clicking on the MPFCarousel node, and setting the value under the Inspector for "Carousel Name". This must be the name of the mode in MPF that contains the carousel and will be triggering changes. The name is required so that GMC can correctly identify in case multiple carousels are active at once. Each mode can only contain a single carousel, but multiple modes can contain carousels. The carousel that is shown is determined by the active modes, and the higher priority mode if multiple modes with carousels are running concurrently.
